FOCUS family of uplights is a compact, high‑performance range designed to bring both landscape and architecture to life with clean, comfortable accents. From intimate gardens to expansive façades, the different sizes and wattages let you scale a scheme while keeping a consistent, refined aesthetic.
A coherent set of optics (15°/24°/36°), 3000K, high CRI 92 and tight colour consistency deliver cohesive, premium results across every view—outdoors and indoors. Used inside, FOCUS uplights can be concealed at the base of walls, columns or planting to add drama, model texture and subtly increase the perceived depth of the space. Robust IP67 construction and long lifetimes make the range a durable, low‑maintenance solution for long‑term architectural schemes.
| IP Rating : | IP67 |
| Optics : | 10°/20°/30° |
| UGR : | <19 |
| CRI : | 92Ra |
| Lifetime : | >50,000 hrs (L70 B10) |
| CCT : | 3000K |
| Typical Source Efficacy (Im/W) : | 113 |
| Control : | On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi |
| Binning : | 2 Step MacAdams |
| Voltage : | DC 24V |
| Power(W : | 2.5W |
| Ambient temp : | -20 ℃ to 45 ℃ |
| Class : | III |
| IP Rating : | IP67 |
| Optics : | 15°/24°/36° |
| UGR : | <19 |
| CRI : | 92Ra |
| Lifetime : | >50,000 hrs (L70 B10) |
| CCT : | 3000K |
| Typical Source Efficacy (Im/W) : | 113 |
| Control : | On/off |
| Binning : | 2 Step MacAdams |
| Voltage : | DC 24V |
| Power(W) : | 8W |
| Ambient temp : | -20 ℃ to 45 ℃ |
| Class : | III |
| IP Rating : | IP67 |

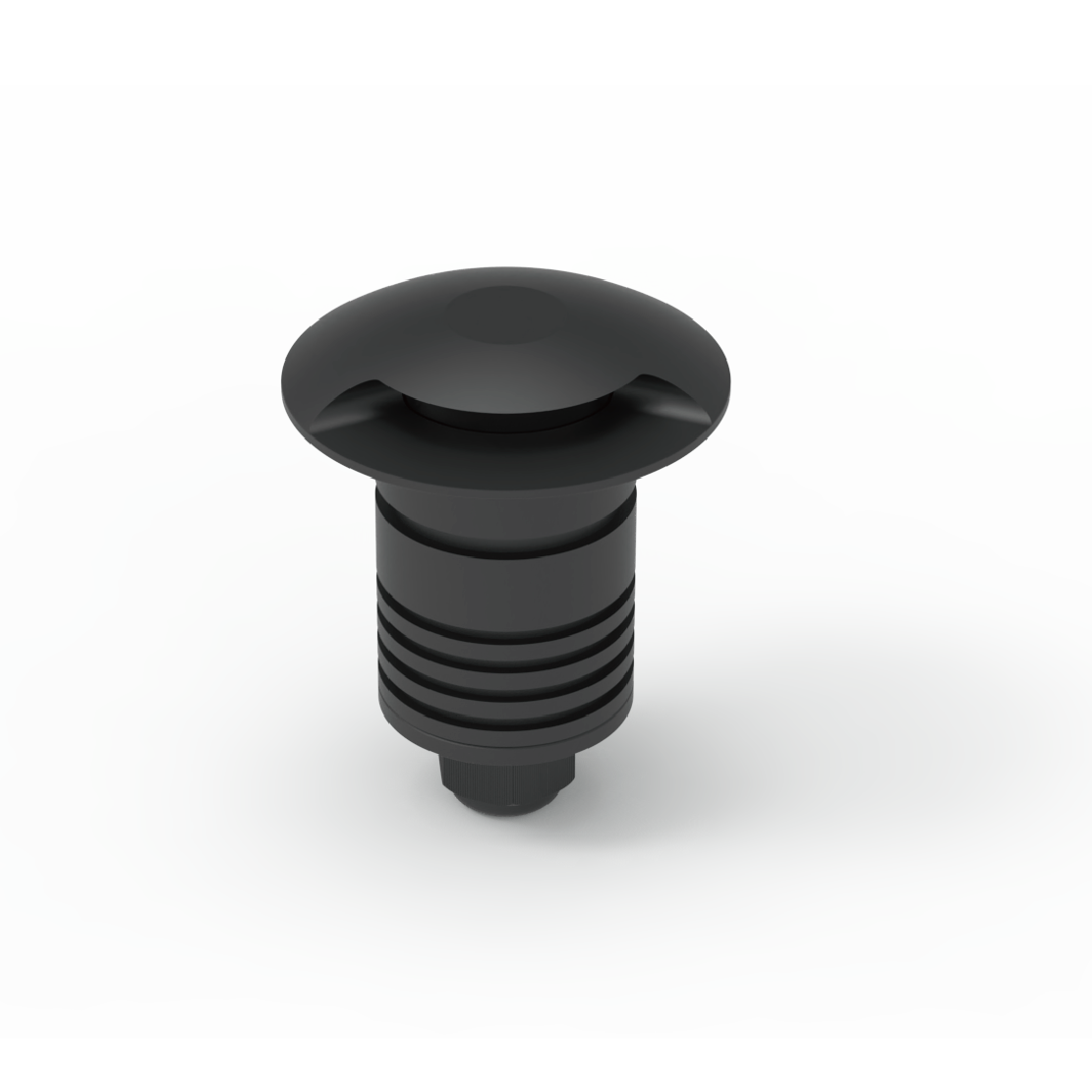

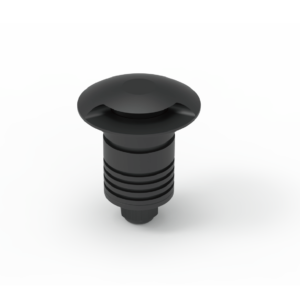

| Optics : | Asymmetric |
| UGR : | <19 |
| CRI : | 92Ra |
| Lifetime : | >50,000 hrs (L70 B10) |
| CCT : | 3000K |
| Typical Source Efficacy (Im/W) : | 113 |
| Control : | On/off |
| Binning : | 2 Step MacAdams |
| Voltage : | DC 24V |
| Power(W) : | 3W |
| Ambient temp : | -20 ℃ to 45 ℃ |
| Class : | III |
| IP Rating : | IP67 |
| Optics : | 15°/24°/36° |
| UGR : | <19 |
| CRI : | 92Ra |
| Lifetime : | >50,000 hrs (L70 B10) |
| CCT : | 3000K |
| Typical Source Efficacy (Im/W) : | 113 |
| Control : | On/off |
| Binning : | 2 Step MacAdams |
| Voltage : | DC 24V |
| Power(W) : | 12W |
| Ambient temp : | -20 ℃ to 45 ℃ |
| Class : | III |
| IP Rating : | IP67 |
| Optics : | 15°/24°/36° |
| UGR : | <19 |
| CRI : | 92Ra |
| Lifetime : | >50,000 hrs (L70 B10) |
| CCT : | 3000K |
| Typical Source Efficacy (Im/W) : | 113 |
| Control : | On/off |
| Binning : | 2 Step MacAdams |
| Voltage : | DC 24V |
| Power(W) : | 20W |
| Ambient temp : | -20 ℃ to 45 ℃ |
| Class : | III |
