EVOLINE

by DuraGreen

Evoline downlights embody a refined, linear approach to architectural lighting, combining ultra‑slim forms with high performance and excellent visual comfort. Available in fixed, adjustable, trimmed and trimless multi‑spot configurations, they allow designers to create continuous lines of light or precise accents while keeping the ceiling calm and uncluttered. With high CRI, low glare optics and multiple beam angles, Evoline is ideal for premium residential, hospitality and retail spaces where discreet fittings and clean details are essential, but quality of light and flexibility cannot be compromised.

✖

SPEC

Certifications

SIZE

EVOLINE - 1 Spot Fixed Line

Copy link Share

IP Rating :IP20 and IP44 options
Optics :14°/25°/35°
UGR :<10
CRI :92Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :3000K/3500K
Typical Source Efficacy (Im/W) :113
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 3V 650mA 3W
Ambient temp :-20 ℃ to 45 ℃
Class :II

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

EVOLINE - 2 Spots Fixed Line

Copy link Share

IP Rating :IP20 and IP44 options
Optics :14°/25°/35°
UGR :<10
CRI :92Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :3000K/3500K
Typical Source Efficacy (Im/W) :113
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 6V 500mA 5W
Ambient temp :-20 ℃ to 45 ℃
Class :II

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

EVOLINE - 3 Spots Adjustable Line

Copy link Share

IP Rating :IP20 and IP44 options
Optics :14°/25°/35°
UGR :<10
CRI :92Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :3000K/3500K/2700K-6000K
Typical Source Efficacy (Im/W) :113
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 9V 500mA 6W, Tunable White DC39V 150mA 6W
Ambient temp :-20 ℃ to 45 ℃
Class :II

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

EVOLINE - 3 Spots Fixed Line

Copy link Share

IP Rating :IP20 and IP44 options
Optics :14°/25°/35°
UGR :<10
CRI :92Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :3000K/3500K/2700K-6000K
Typical Source Efficacy (Im/W) :113
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 9V 500mA 6W, Tunable White DC39V 150mA 6W
Ambient temp :-20 ℃ to 45 ℃
Class :II

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

EVOLINE - 3 Spots Trimless Line

Copy link Share

IP Rating :IP20 and IP44 options
Optics :14°/25°/35°
UGR :<10
CRI :92Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :3000K/3500K/2700K-6000K
Typical Source Efficacy (Im/W) :113
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 9V 500mA 6W, Tunable White DC39V 150mA 6W
Ambient temp :-20 ℃ to 45 ℃
Class :II

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

EVOLINE - 6 Spots Fixed Line

Copy link Share

IP Rating :IP20 and IP44 options
Optics :14°/25°/35°
UGR :<10
CRI :92Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :3000K/3500K/2700K-6000K
Typical Source Efficacy (Im/W) :113
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 18V 400mA 8W DC 18V 500mA 10W DC 18V 600mA 12W
Ambient temp :-20 ℃ to 45 ℃
Class :II

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

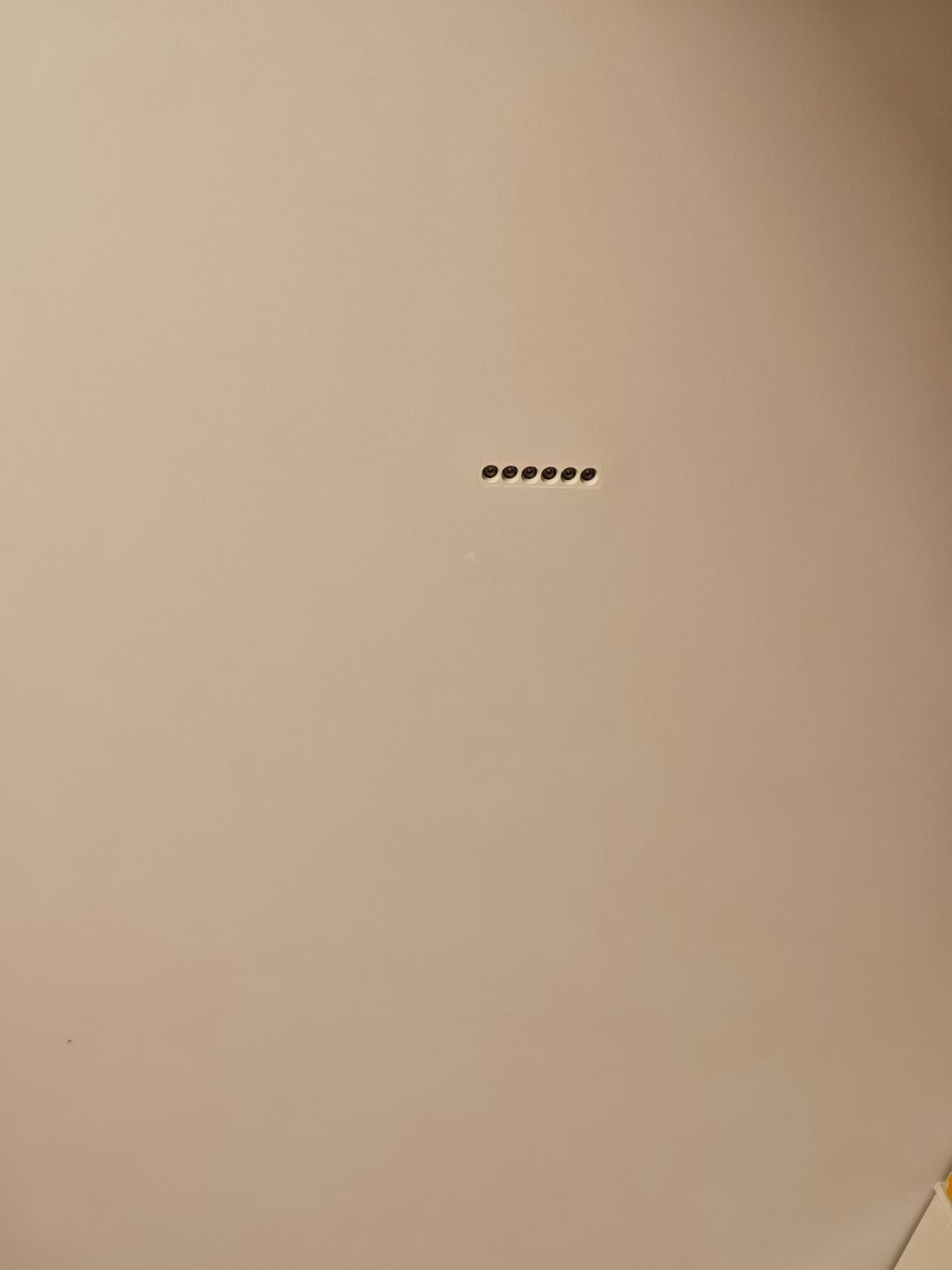

EVOLINE - 6 Spots Trimless Line

Copy link Share

IP Rating :IP20 and IP44 options
Optics :14°/25°/35°
UGR :<10
CRI :92Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :3000K/3500K/2700K-6000K
Typical Source Efficacy (Im/W) :113
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 18V 400mA 8W DC 18V 500mA 10W DC 18V 600mA 12W
Ambient temp :-20 ℃ to 45 ℃
Class :II

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

Certifications

SIZE

EVOLINE - 9 Spots Fixed Line

Copy link Share

IP Rating :IP20 and IP44 options
Optics :14°/25°/35°
UGR :<10
CRI :92Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :3000K/3500K/2700K-6000K
Typical Source Efficacy (Im/W) :113
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 27V 500mA 15W DC 27V 700mA 20W
Ambient temp :-20 ℃ to 45 ℃
Class :II

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
✖

SPEC

SIZE

EVOLINE - 9 Spots Fixed Square

Copy link Share

IP Rating :IP20 and IP44 options
Optics :50°
UGR :<17
CRI :92Ra
Lifetime :>50,000 hrs (L70 B10)
CCT :3000K/3500K
Typical Source Efficacy (Im/W) :113
Control :On/off, Mains Dim, 0/1-10V, Dali, Zigbee, Casambi
Binning :2 Step MacAdams
Input :AC220-240V 50/60Hz
Output* :DC 27V 300mA 8W
Ambient temp :-20 ℃ to 45 ℃
Class :II

* Listed driver currents apply to non‑dimmable (on/off) drivers only. For dimmable drivers, please contact your sales representative for current settings; these typically require a reduction of ~50 mA to account for efficiency losses.
Contact Us
